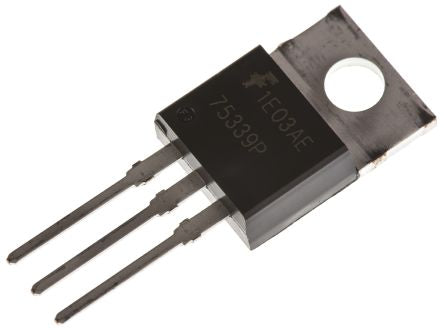

![ON Semiconductor HUF75339P3 1454541](http://nguyenxuong.com/cdn/shop/products/F6715363-01_4d37328d-7416-4dc0-9bc4-79d64aa02a5c_444x333.jpg?v=1594259666)
HUF75339P3 N-Channel MOSFET, 75 A, 55 V UltraFET, 3-Pin TO-220AB ON Semiconductor [HUF75339P3]; 145-4541
0₫
Mã kho: 1454541
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 75 A |
Maximum Drain Source Voltage | 55 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 12 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 200 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 4.83mm |
Height | 9.4mm |
Length | 10.67mm |
Transistor Material | Si |
Maximum Operating Temperature | +175 °C |
Typical Gate Charge @ Vgs | 110 nC @ 20 V |
Minimum Operating Temperature | -55 °C |
Series | UltraFET |
