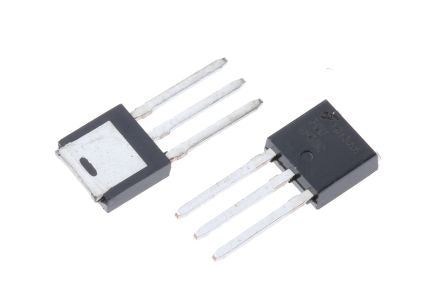

FQU1N60CTU N-Channel MOSFET, 1 A, 600 V QFET, 3-Pin IPAK ON Semiconductor [FQU1N60CTU]; 145-4540
0₫
Mã kho: 1454540
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.0416666666666667 |
| Maximum Drain Source Voltage | 600 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 11.5 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 2.3mm |
| Series | QFET |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 4.8 nC @ 10 V |
| Height | 6.1mm |
| Minimum Operating Temperature | -55 °C |
| Length | 6.6mm |
| Transistor Material | Si |
