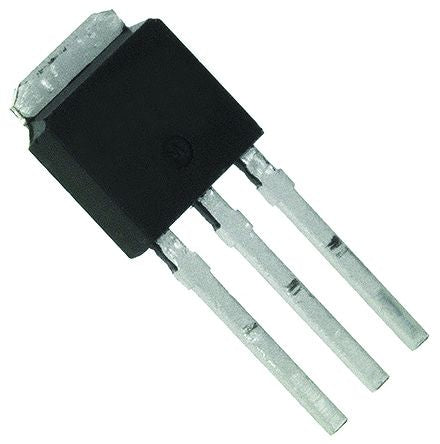

FQU17P06TU P-Channel MOSFET, 12 A, 60 V, 3-Pin IPAK ON Semiconductor [FQU17P06TU]; 864-4740
0₫
Mã kho: 8644740
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 60 V |
| Package Type | IPAK (TO-251) |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 135 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 21 nC @ 10 V |
| Height | 7.57mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.8mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Width | 2.5mm |
