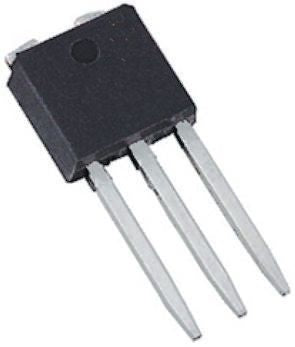

FQU13N10LTU N-Channel MOSFET, 10 A, 100 V QFET, 3-Pin IPAK ON Semiconductor [FQU13N10LTU]; 145-4317
0₫
Mã kho: 1454317
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.416666666666667 |
Maximum Drain Source Voltage | 100 V |
Package Type | IPAK (TO-251) |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 180 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 2.3mm |
Series | QFET |
Minimum Operating Temperature | -55 °C |
Length | 6.6mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 8.7 nC @ 5 V |
Transistor Material | Si |
Height | 6.1mm |
