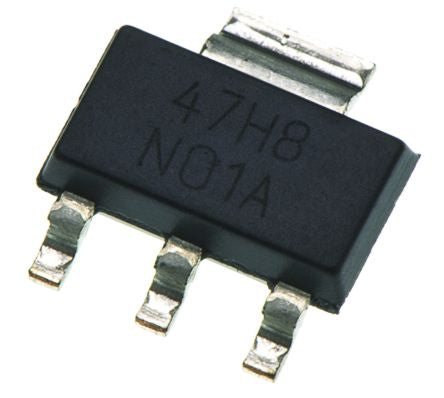

FQT2P25TF P-Channel MOSFET, 550 mA, 250 V QFET, 3+Tab-Pin SOT-223 ON Semiconductor [FQT2P25TF]; 166-3384
0₫
Mã kho: 1663384
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 550 mA |
Maximum Drain Source Voltage | 250 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 4 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 3.7mm |
Transistor Material | Si |
Height | 1.8mm |
Typical Gate Charge @ Vgs | 6.5 nC @ 10 V |
Length | 6.7mm |
Series | QFET |
Maximum Operating Temperature | +150 °C |
