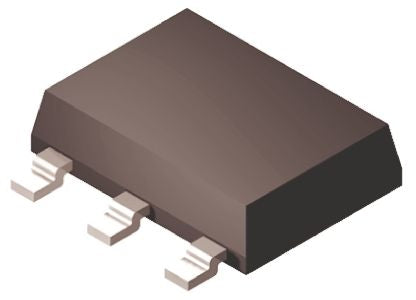

FQT13N06LTF N-Channel MOSFET, 2.8 A, 60 V QFET, 3+Tab-Pin SOT-223 ON Semiconductor [FQT13N06LTF]; 145-5522
0₫
Mã kho: 1455522
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 2.8 A |
Maximum Drain Source Voltage | 60 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 110 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 2.1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Height | 1.6mm |
Series | QFET |
Maximum Operating Temperature | +150 °C |
Length | 6.5mm |
Transistor Material | Si |
Width | 3.56mm |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 4.8 nC @ 5 V |
