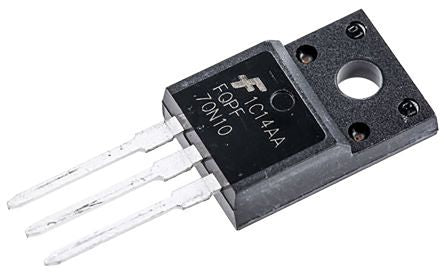

FQPF70N10 N-Channel MOSFET, 35 A, 100 V QFET, 3-Pin TO-220F ON Semiconductor [FQPF70N10]; 124-1764
0₫
Mã kho: 1241764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 35 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 23 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 62 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Width | 4.7mm |
Maximum Operating Temperature | +175 °C |
Series | QFET |
Height | 9.19mm |
Typical Gate Charge @ Vgs | 85 nC @ 10 V |
Length | 10.16mm |
