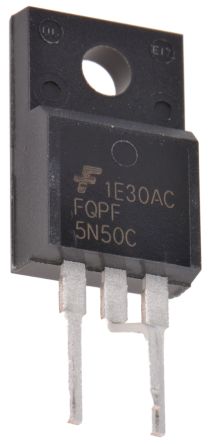

FQPF5N50CYDTU N-Channel MOSFET, 5 A, 500 V QFET, 3-Pin TO-220F ON Semiconductor [FQPF5N50CYDTU]; 862-8779
0₫
Mã kho: 8628779
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.208333333333333 |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.4 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 38 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 4.7mm |
| Length | 10.16mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V |
| Height | 15.87mm |
| Maximum Operating Temperature | +150 °C |
| Series | QFET |
