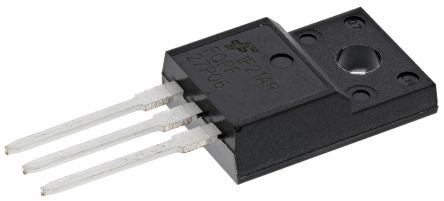

FQPF27P06 P-Channel MOSFET, 19 A, 60 V QFET, 3-Pin TO-220 ON Semiconductor [FQPF27P06]; 807-5901
0₫
Mã kho: 8075901
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 19 A |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-220 |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 70 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 120 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Width | 4.7mm |
Length | 10.67mm |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 33 nC @ 10 V |
Height | 16.3mm |
Series | QFET |
Maximum Operating Temperature | +175 °C |
