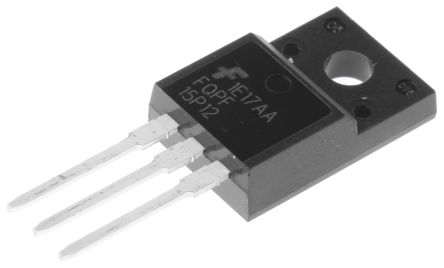

![ON Semiconductor FQPF15P12 1454389](http://nguyenxuong.com/cdn/shop/products/F8075894-01_5f8b121c-daf6-4cd5-a10c-cc135c926f63_444x268.jpg?v=1594403706)
FQPF15P12 P-Channel MOSFET, 10.6 A, 120 V QFET, 3-Pin TO-220F ON Semiconductor [FQPF15P12]; 145-4389
0₫
Mã kho: 1454389
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 10.6 A |
Maximum Drain Source Voltage | 120 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 200 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 41 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Width | 4.9mm |
Minimum Operating Temperature | -55 °C |
Height | 16.07mm |
Typical Gate Charge @ Vgs | 29 nC @ 10 V |
Transistor Material | Si |
Series | QFET |
Maximum Operating Temperature | +175 °C |
Length | 10.36mm |
