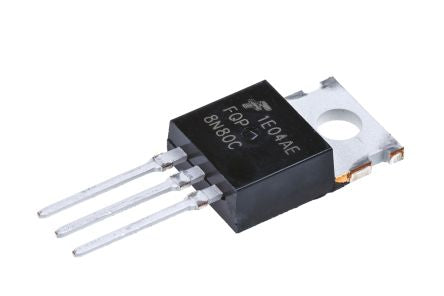

FQP8N80C N-Channel MOSFET, 8 A, 800 V QFET, 3-Pin TO-220AB ON Semiconductor [FQP8N80C]; 145-4314
0₫
Mã kho: 1454314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.333333333333333 |
Maximum Drain Source Voltage | 800 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 1.55 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 178 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Length | 10.1mm |
Width | 4.7mm |
Series | QFET |
Height | 9.4mm |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 35 nC @ 10 V |
