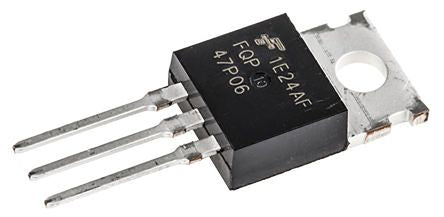

FQP47P06 P-Channel MOSFET, 47 A, 60 V QFET, 3-Pin TO-220AB ON Semiconductor [FQP47P06]; 124-1758
0₫
Mã kho: 1241758
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 47 A |
Maximum Drain Source Voltage | 60 V |
Package Type | TO-220AB |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 26 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 160 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 1 |
Transistor Material | Si |
Width | 4.7mm |
Minimum Operating Temperature | -55 °C |
Maximum Operating Temperature | +175 °C |
Series | QFET |
Height | 9.4mm |
Typical Gate Charge @ Vgs | 84 nC @ 10 V |
Length | 10.1mm |
