Discrete Semiconductors > MOSFETs

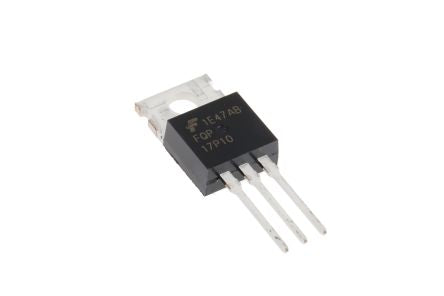

FQP17P10 P-Channel MOSFET, 16.5 A, 100 V QFET, 3-Pin TO-220AB ON Semiconductor [FQP17P10]; 145-4520

0₫
(Giá chưa VAT).
Mã kho: 1454520

Mã nhà sản xuất: FQP17P10

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Channel Type P
Maximum Continuous Drain Current 16.5 A
Maximum Drain Source Voltage 100 V
Package Type TO-220AB
Mounting Type Through Hole
Pin Count 3
Maximum Drain Source Resistance 190 mΩ
Channel Mode Enhancement
Minimum Gate Threshold Voltage 2V
Maximum Power Dissipation 10 W
Transistor Configuration Single
Maximum Gate Source Voltage -30 V, +30 V
Number of Elements per Chip 1
Height 9.4mm
Width 4.7mm
Typical Gate Charge @ Vgs 30 nC @ 10 V
Minimum Operating Temperature -55 °C
Transistor Material Si
Length 10.1mm
Series QFET
Maximum Operating Temperature +175 °C
