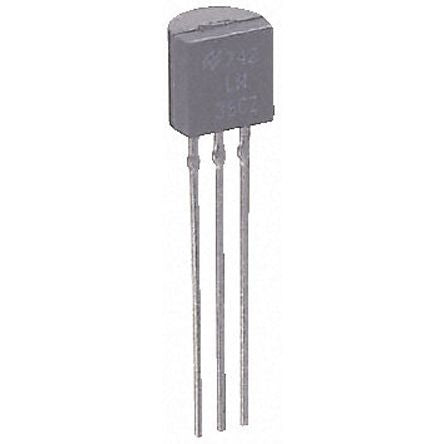

FQNL2N50BTA N-Channel MOSFET, 350 mA, 500 V QFET, 3-Pin TO-92L ON Semiconductor [FQNL2N50BTA]; 166-2580
0₫
Mã kho: 1662580
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 350 mA |
Maximum Drain Source Voltage | 500 V |
Package Type | TO-92L |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 5.3 Ω |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2.3V |
Maximum Power Dissipation | 1.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Width | 3.9mm |
Typical Gate Charge @ Vgs | 6 nC @ 10 V |
Length | 4.9mm |
Height | 8mm |
Series | QFET |
Maximum Operating Temperature | +150 °C |
