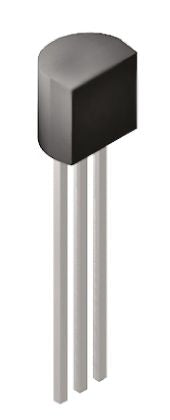

FQN1N50CTA N-Channel MOSFET, 380 mA, 500 V QFET, 3-Pin TO-92 ON Semiconductor [FQN1N50CTA]; 146-2157
0₫
Mã kho: 1462157
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 380 mA |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 6 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.08 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 4.19mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 4.9 nC @ 10 V |
| Series | QFET |
| Maximum Operating Temperature | +150 °C |
| Length | 5.2mm |
| Height | 5.33mm |
