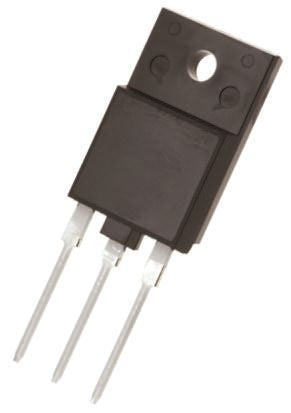

FQAF13N80 N-Channel MOSFET, 8 A, 800 V QFET, 3-Pin TO-3PF ON Semiconductor [FQAF13N80]; 145-4302
0₫
Mã kho: 1454302
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 800 V |
| Package Type | TO-3PF |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 750 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 120 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Width | 5.7mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
| Series | QFET |
| Height | 16.7mm |
| Length | 15.7mm |
| Typical Gate Charge @ Vgs | 68 nC @ 10 V |
