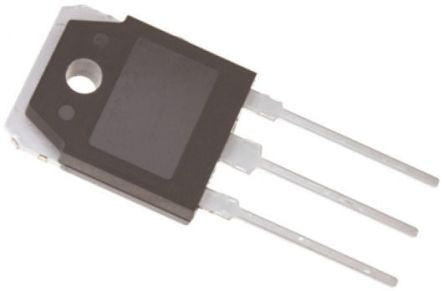

FQA6N90C-F109 N-Channel MOSFET, 6 A, 900 V QFET, 3-Pin TO-3PN ON Semiconductor [FQA6N90C-F109]; 671-4954
0₫
Mã kho: 6714954
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.25 |
| Maximum Drain Source Voltage | 900 V |
| Package Type | TO-3PN |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.3 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 198 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Height | 18.9mm |
| Series | QFET |
| Maximum Operating Temperature | +150 °C |
| Length | 15.8mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 30 nC @ 10 V |
| Width | 5mm |
