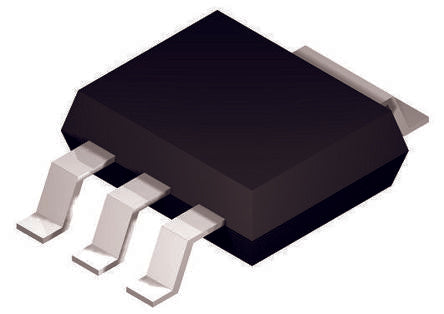

FDT86244 N-Channel MOSFET, 2.8 A, 150 V PowerTrench, 3+Tab-Pin SOT-223 ON Semiconductor [FDT86244]; 166-2708
0₫
Mã kho: 1662708
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 2.8 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-223 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 237 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 2.2 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 6.7mm |
| Typical Gate Charge @ Vgs | 4.9 nC @ 10 V |
| Height | 1.7mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Length | 3.7mm |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
