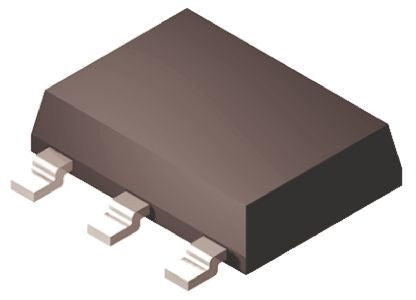

FDT3N40TF N-Channel MOSFET, 2 A, 400 V UniFET, 3+Tab-Pin SOT-223 ON Semiconductor [FDT3N40TF]; 166-3158
0₫
Mã kho: 1663158
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0.0833333333333333 |
Maximum Drain Source Voltage | 400 V |
Package Type | SOT-223 |
Mounting Type | Surface Mount |
Pin Count | 3 + Tab |
Maximum Drain Source Resistance | 3.4 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 5V |
Minimum Gate Threshold Voltage | 3V |
Maximum Power Dissipation | 2 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -30 V, +30 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Transistor Material | Si |
Length | 6.5mm |
Height | 1.6mm |
Series | UniFET |
Maximum Operating Temperature | +150 °C |
Width | 3.5mm |
Typical Gate Charge @ Vgs | 4.5 nC @ 10 V |
