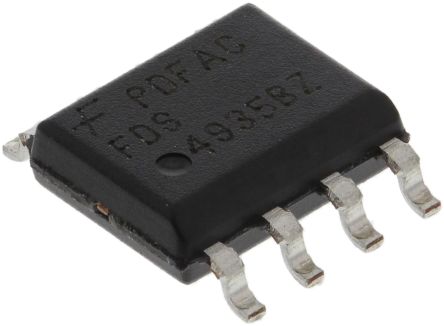

FDS4935BZ Dual P-Channel MOSFET, 6.9 A, 30 V PowerTrench, 8-Pin SOIC ON Semiconductor [FDS4935BZ]; 146-2063
0₫
Mã kho: 1462063
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 6.9 A |
Maximum Drain Source Voltage | 30 V |
Package Type | SOIC |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 22 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 1.6 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -25 V, +25 V |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Width | 4mm |
Length | 5mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 29 nC @ 10 V |
Maximum Operating Temperature | +150 °C |
Series | PowerTrench |
Height | 1.5mm |
