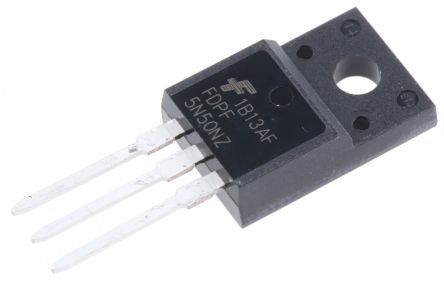

FDPF5N50NZ N-Channel MOSFET, 4.5 A, 500 V UniFET, 3-Pin TO-220F ON Semiconductor [FDPF5N50NZ]; 739-4885
0₫
Mã kho: 7394885
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 4.5 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-220F |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.5 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 3V |
| Maximum Power Dissipation | 30 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Series | UniFET |
| Maximum Operating Temperature | +150 °C |
| Length | 10.16mm |
| Width | 4.7mm |
| Transistor Material | Si |
| Typical Gate Charge @ Vgs | 9 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Height | 15.87mm |
