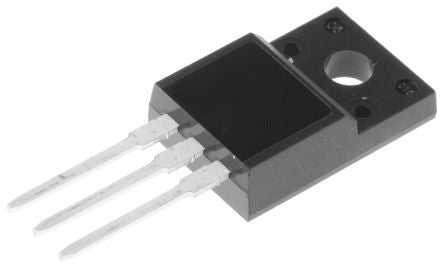

![ON Semiconductor FDPF4D5N10C 1811917](http://nguyenxuong.com/cdn/shop/products/P1811917-01_444x268.jpg?v=1594325195)
FDPF4D5N10C N-Channel MOSFET, 128 A, 100 V, 3-Pin TO-220F ON Semiconductor [FDPF4D5N10C]; 181-1917
0₫
Mã kho: 1811917
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 128 A |
Maximum Drain Source Voltage | 100 V |
Package Type | TO-220F |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Drain Source Resistance | 4.5 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 4V |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 37.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±20 V |
Number of Elements per Chip | 1 |
Forward Diode Voltage | 1.3V |
Typical Gate Charge @ Vgs | 48 nC @ 10 V |
Minimum Operating Temperature | -55 °C |
Height | 16.07mm |
Maximum Operating Temperature | +175 °C |
Length | 10.36mm |
Width | 4.9mm |
