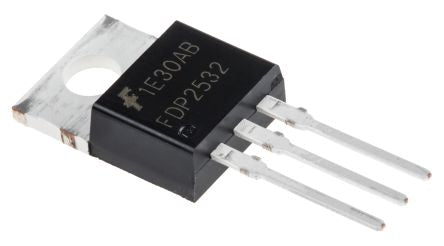

FDP2532 N-Channel MOSFET, 8 A, 150 V PowerTrench, 3-Pin TO-220AB ON Semiconductor [FDP2532]; 671-4803
0₫
Mã kho: 6714803
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 150 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 310 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Length | 10.67mm |
| Width | 4.83mm |
| Transistor Material | Si |
| Series | PowerTrench |
| Height | 9.4mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 82 nC @ 10 V |
| Maximum Operating Temperature | +175 °C |
