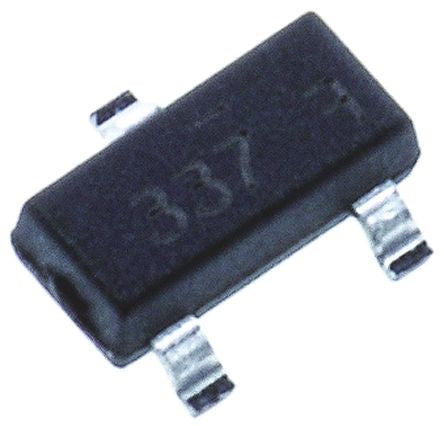

FDN86265P P-Channel MOSFET, 800 mA, 150 V PowerTrench, 3-Pin SOT-23 ON Semiconductor [FDN86265P]; 166-3331
0₫
Mã kho: 1663331
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 800 mA |
| Maximum Drain Source Voltage | 150 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 2.2 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 1.5 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -25 V, +25 V |
| Number of Elements per Chip | 1 |
| Width | 1.4mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 2.9 nC @ 10 V |
| Height | 0.94mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Length | 2.92mm |
