![ON Semiconductor FDN86246 1662695](http://nguyenxuong.com/cdn/shop/products/F7599655-01_444x297.jpg?v=1594009075)

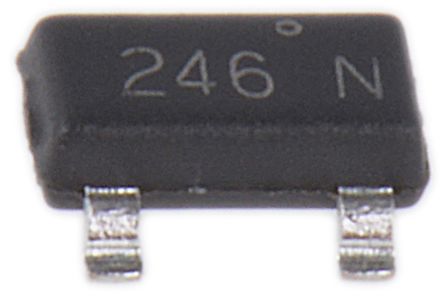

FDN86246 N-Channel MOSFET, 1.6 A, 150 V PowerTrench, 3-Pin SOT-23 ON Semiconductor [FDN86246]; 166-2695
0₫
Mã kho: 1662695
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 1.6 A |
Maximum Drain Source Voltage | 150 V |
Package Type | SOT-23 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 481 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 1.5 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Width | 2.92mm |
Height | 0.94mm |
Typical Gate Charge @ Vgs | 2.9 nC @ 10 V |
Series | PowerTrench |
Length | 1.4mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
