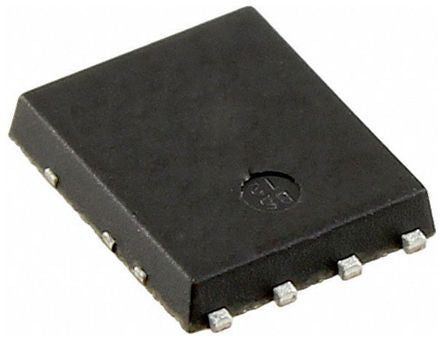

FDMS9620S Dual N-Channel MOSFET, 7.5 A, 10 A, 30 V PowerTrench, SyncFET, 8-Pin Power 56 ON Semiconductor [FDMS9620S]; 166-2874
0₫
Mã kho: 1662874
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 7.5 A, 10 A |
Maximum Drain Source Voltage | 30 V |
Package Type | Power 56 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 22 mΩ, 32 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 2.5 W |
Transistor Configuration | Series |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 2 |
Minimum Operating Temperature | -55 °C |
Height | 0.75mm |
Series | PowerTrench, SyncFET |
Width | 6mm |
Length | 5mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 10 nC @ 10 V, 18 nC @ 10 V |
