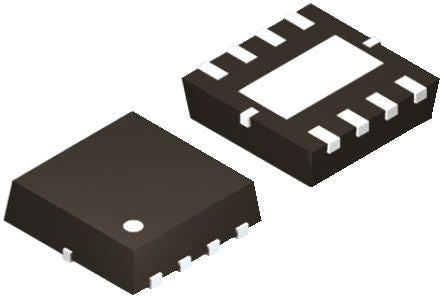

FDMS86350 N-Channel MOSFET, 130 A, 80 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS86350]; 166-2155
0₫
Mã kho: 1662155
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 130 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.8 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 156 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Width | 6.25mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 110 nC @ 10 V |
| Height | 1.05mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Length | 5.1mm |
| Transistor Material | Si |
