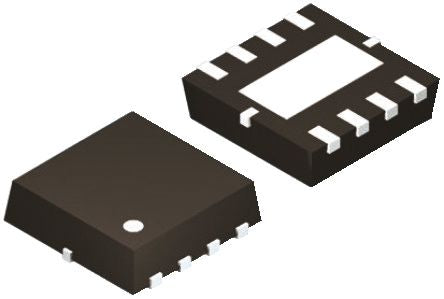

FDMS86252L N-Channel MOSFET, 12 A, 150 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS86252L]; 166-2095
0₫
Mã kho: 1662095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 0 |
Maximum Drain Source Voltage | 150 V |
Package Type | Power 56 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 110 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 50 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Height | 1.05mm |
Width | 5.85mm |
Series | PowerTrench |
Minimum Operating Temperature | -55 °C |
Length | 5mm |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Typical Gate Charge @ Vgs | 15 nC @ 10 V |
