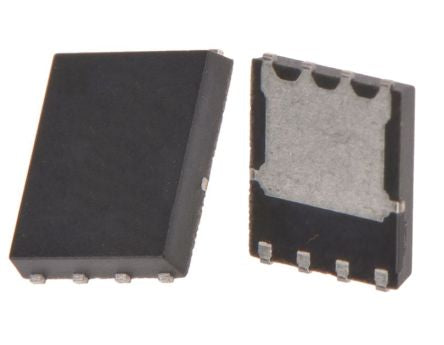

FDMS86181 N-Channel MOSFET, 124 A, 100 V, 8-Pin PQFN ON Semiconductor [FDMS86181]; 181-1857
0₫
Mã kho: 1811857
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 124 A |
| Maximum Drain Source Voltage | 100 V |
| Package Type | PQFN |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 12 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 125 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 5mm |
| Typical Gate Charge @ Vgs | 42 nC @ 10 V |
| Height | 1.05mm |
| Forward Diode Voltage | 1.3V |
| Length | 5.85mm |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
