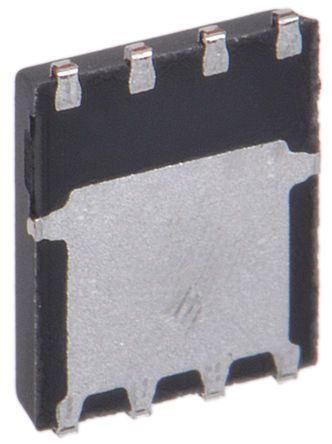

FDMS8020 N-Channel MOSFET, 131 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS8020]; 803-1853
0₫
Mã kho: 8031853
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 131 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 3.7 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 65 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 43 nC @ 10 V |
| Width | 6mm |
| Maximum Operating Temperature | +150 °C |
| Series | PowerTrench |
| Height | 1.05mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Length | 5mm |
