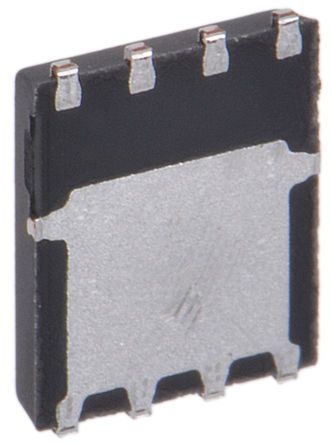

![ON Semiconductor FDMS8018 1661670](http://nguyenxuong.com/cdn/shop/products/R6710390-01_1f38f969-40af-451b-a370-0693ba8ee0db_332x444.jpg?v=1594425942)
FDMS8018 N-Channel MOSFET, 30 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS8018]; 166-1670
0₫
Mã kho: 1661670
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 30 A |
Maximum Drain Source Voltage | 30 V |
Package Type | Power 56 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 2.7 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 83 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Series | PowerTrench |
Width | 6.25mm |
Maximum Operating Temperature | +150 °C |
Height | 1.05mm |
Transistor Material | Si |
Length | 5.1mm |
Typical Gate Charge @ Vgs | 28 nC @ 4.5 V, 58 nC @ 10 V |
