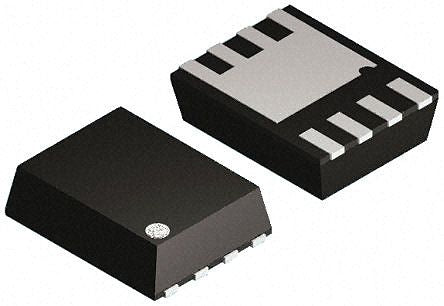

![ON Semiconductor FDMS7682 8644784](http://nguyenxuong.com/cdn/shop/products/R8644784-01_444x306.jpg?v=1594396683)
FDMS7682 N-Channel MOSFET, 59 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS7682]; 864-4784
0₫
Mã kho: 8644784
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 59 A |
Maximum Drain Source Voltage | 30 V |
Package Type | Power 56 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 8.5 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1.25V |
Maximum Power Dissipation | 33 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 5mm |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Series | PowerTrench |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 21 nC @ 10 V |
Height | 1.05mm |
Width | 6mm |
