Discrete Semiconductors > MOSFETs

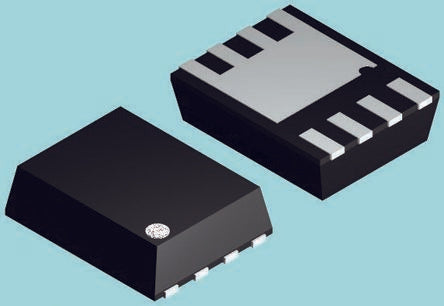

FDMS7670AS N-Channel MOSFET, 113 A, 30 V PowerTrench, SyncFET, 8-Pin Power 56 ON Semiconductor [FDMS7670AS]; 166-2675

0₫
(Giá chưa VAT).
Mã kho: 1662675

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Channel Type N
Maximum Continuous Drain Current 113 A
Maximum Drain Source Voltage 30 V
Package Type Power 56
Mounting Type Surface Mount
Pin Count 8
Maximum Drain Source Resistance 3.8 mΩ
Channel Mode Enhancement
Minimum Gate Threshold Voltage 1.2V
Maximum Power Dissipation 65 W
Transistor Configuration Single
Maximum Gate Source Voltage -20 V, +20 V
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Transistor Material Si
Height 1.05mm
Maximum Operating Temperature +150 °C
Width 6mm
Typical Gate Charge @ Vgs 47 nC @ 10 V
Series PowerTrench, SyncFET
Length 5mm
