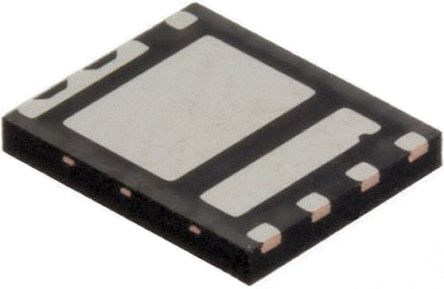

FDMS7608S Dual N-Channel MOSFET, 22 A, 30 A, 30 V PowerTrench, 8-Pin Power 56 ON Semiconductor [FDMS7608S]; 166-3512
0₫
Mã kho: 1663512
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 22 A, 30 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 8.6 mΩ, 13.9 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1.2V |
| Maximum Power Dissipation | 2.2 W, 2.5 W |
| Transistor Configuration | Series |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Transistor Material | Si |
| Width | 6mm |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V, 21 nC @ 10 V |
| Height | 0.725mm |
| Maximum Operating Temperature | +150 °C |
| Series | PowerTrench |
| Length | 5mm |
