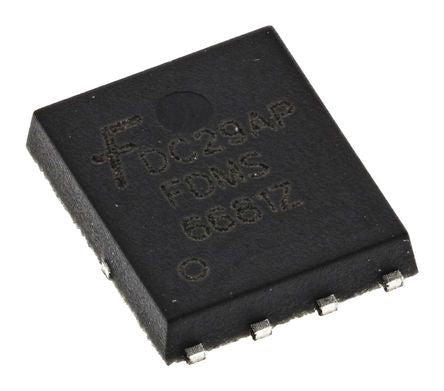

FDMS3572 N-Channel MOSFET, 48 A, 80 V UltraFET, 8-Pin Power 56 ON Semiconductor [FDMS3572]; 166-3289
0₫
Mã kho: 1663289
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 48 A |
| Maximum Drain Source Voltage | 80 V |
| Package Type | Power 56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 29 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 78 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Width | 6mm |
| Minimum Operating Temperature | -55 °C |
| Length | 5mm |
| Height | 0.75mm |
| Typical Gate Charge @ Vgs | 28 nC @ 10 V |
| Series | UltraFET |
| Transistor Material | Si |
