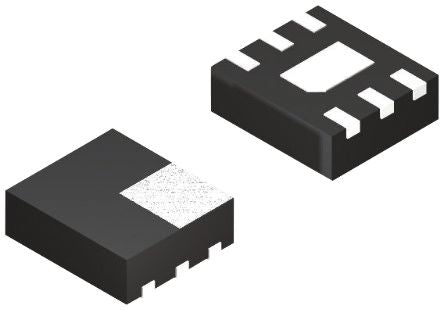

FDME910PZT P-Channel MOSFET, 8 A, 20 V PowerTrench, 6-Pin MLP ON Semiconductor [FDME910PZT]; 166-3548
0₫
Mã kho: 1663548
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 0.333333333333333 |
Maximum Drain Source Voltage | 20 V |
Package Type | MLP |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 45 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 0.4V |
Maximum Power Dissipation | 2.1 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -8 V, +8 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Length | 1.6mm |
Width | 1.6mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 15 nC @ 10 V |
Height | 0.5mm |
Series | PowerTrench |
Maximum Operating Temperature | +150 °C |
