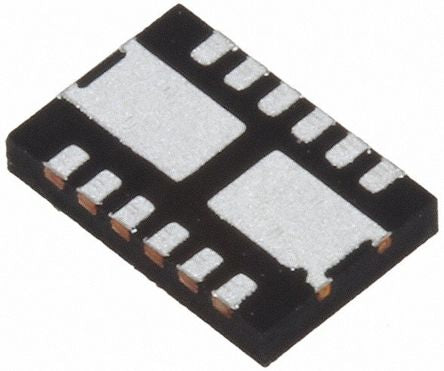

FDMD82100 Dual N-Channel MOSFET, 25 A, 100 V PowerTrench, 12-Pin PQFN ON Semiconductor [FDMD82100]; 166-3506
0₫
Mã kho: 1663506
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 25 A |
Maximum Drain Source Voltage | 100 V |
Package Type | PQFN |
Mounting Type | Surface Mount |
Pin Count | 12 |
Maximum Drain Source Resistance | 35 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 2V |
Maximum Power Dissipation | 2.1 W |
Transistor Configuration | Series |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 2 |
Width | 3.4mm |
Minimum Operating Temperature | -55 °C |
Length | 5.1mm |
Transistor Material | Si |
Typical Gate Charge @ Vgs | 12 nC @ 10 V |
Height | 0.75mm |
Series | PowerTrench |
Maximum Operating Temperature | +150 °C |
