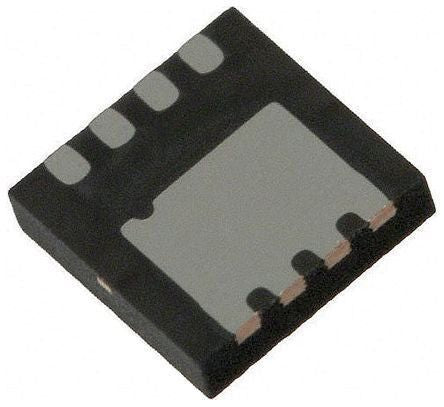

![ON Semiconductor FDMC8854 8644829](http://nguyenxuong.com/cdn/shop/products/R8644829-01_444x408.jpg?v=1594111486)
FDMC8854 N-Channel MOSFET, 15 A, 30 V PowerTrench, 8-Pin MLP ON Semiconductor [FDMC8854]; 864-4829
0₫
Mã kho: 8644829
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 15 A |
Maximum Drain Source Voltage | 30 V |
Package Type | MLP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 9 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 41 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Typical Gate Charge @ Vgs | 41 nC @ 10 V |
Maximum Operating Temperature | +150 °C |
Series | PowerTrench |
Minimum Operating Temperature | -55 °C |
Length | 3.3mm |
Height | 0.725mm |
Transistor Material | Si |
Width | 3.3mm |
