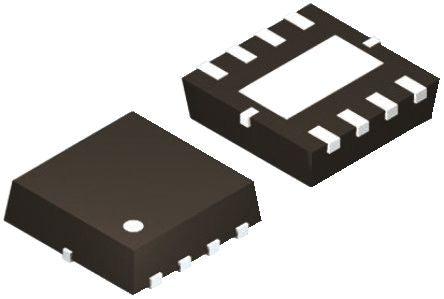

FDMC86260 N-Channel MOSFET, 16 A, 150 V PowerTrench, 8-Pin Power 33 ON Semiconductor [FDMC86260]; 864-8221
0₫
Mã kho: 8648221
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 16 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | Power 33 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 69 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 54 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Series | PowerTrench |
| Transistor Material | Si |
| Width | 3.3mm |
| Height | 0.75mm |
| Typical Gate Charge @ Vgs | 15 nC @ 10 V |
| Length | 3.3mm |
| Maximum Operating Temperature | +150 °C |
