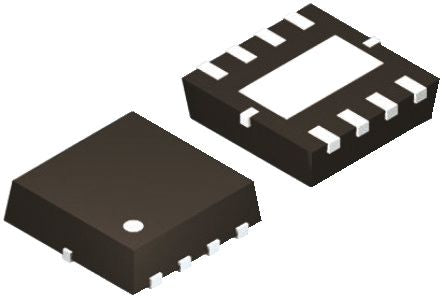

FDMC8360L N-Channel MOSFET, 80 A, 40 V PowerTrench, 8-Pin Power 33 ON Semiconductor [FDMC8360L]; 166-2093
0₫
Mã kho: 1662093
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 80 A |
Maximum Drain Source Voltage | 40 V |
Package Type | Power 33 |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 2.9 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 54 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Length | 3.4mm |
Height | 0.75mm |
Typical Gate Charge @ Vgs | 57 nC @ 10 V |
Width | 3.4mm |
Maximum Operating Temperature | +150 °C |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Series | PowerTrench |
