![ON Semiconductor FDMC7678 7599538](http://nguyenxuong.com/cdn/shop/products/R7599538-01_444x352.jpg?v=1594302557)

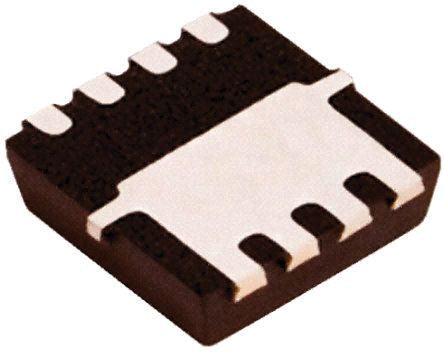

FDMC7678 N-Channel MOSFET, 63 A, 30 V PowerTrench, 8-Pin MLP ON Semiconductor [FDMC7678]; 759-9538
0₫
Mã kho: 7599538
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 63 A |
Maximum Drain Source Voltage | 30 V |
Package Type | MLP |
Mounting Type | Surface Mount |
Pin Count | 8 |
Maximum Drain Source Resistance | 7.2 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 31 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -20 V, +20 V |
Number of Elements per Chip | 1 |
Width | 3.3mm |
Maximum Operating Temperature | +150 °C |
Length | 3.3mm |
Transistor Material | Si |
Height | 0.75mm |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 28 nC @ 10 V |
Series | PowerTrench |
