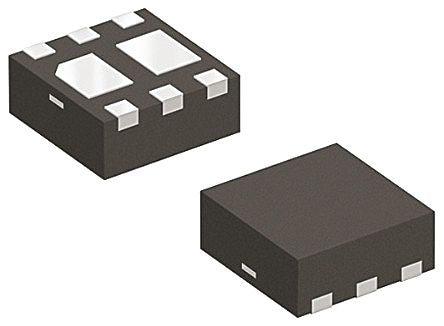

FDMB2308PZ Dual P-Channel MOSFET, 7 A, 20 V PowerTrench, 6-Pin MLP ON Semiconductor [FDMB2308PZ]; 124-1433
0₫
Mã kho: 1241433
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0.291666666666667 |
| Maximum Drain Source Voltage | 20 V |
| Package Type | MLP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 50 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.6V |
| Maximum Power Dissipation | 2.2 W, 800 mW |
| Transistor Configuration | Common Drain |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Transistor Material | Si |
| Width | 2mm |
| Typical Gate Charge @ Vgs | 22 nC @ 4.5 V |
| Series | PowerTrench |
| Length | 3mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.725mm |
