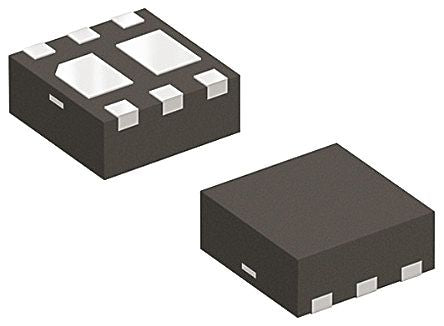

FDMA908PZ P-Channel MOSFET, 12 A, 12 V PowerTrench, 6-Pin MLP ON Semiconductor [FDMA908PZ]; 166-2323
0₫
Mã kho: 1662323
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | P |
| Maximum Continuous Drain Current | 0 |
| Maximum Drain Source Voltage | 12 V |
| Package Type | MLP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 16 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 2.4 W, 900 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 1 |
| Width | 2.05mm |
| Minimum Operating Temperature | -55 °C |
| Length | 2.05mm |
| Series | PowerTrench |
| Height | 0.775mm |
| Typical Gate Charge @ Vgs | 24 nC @ 4.5 V |
| Transistor Material | Si |
| Maximum Operating Temperature | +150 °C |
