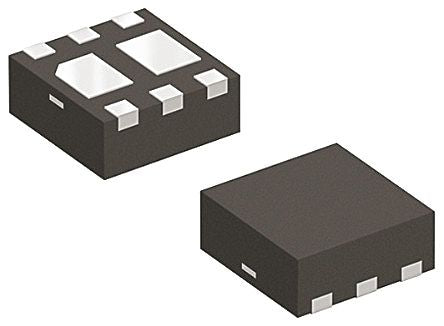

FDMA8051L N-Channel MOSFET, 10 A, 40 V PowerTrench, 6-Pin MLP ON Semiconductor [FDMA8051L]; 145-5682
0₫
Mã kho: 1455682
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.416666666666667 |
| Maximum Drain Source Voltage | 40 V |
| Package Type | MLP |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 19 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 2.4 W, 900 mW |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Series | PowerTrench |
| Width | 2mm |
| Length | 2mm |
| Transistor Material | Si |
| Height | 0.75mm |
| Maximum Operating Temperature | +150 °C |
| Typical Gate Charge @ Vgs | 14 nC @ 10 V |
