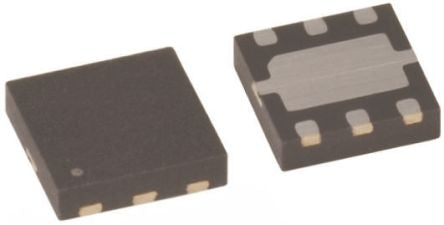

FDMA1032CZ Dual N/P-Channel MOSFET, 3.1 A, 3.7 A, 20 V PowerTrench, 6-Pin MLP ON Semiconductor [FDMA1032CZ]; 166-2660
0₫
Mã kho: 1662660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N, P |
Maximum Continuous Drain Current | 3.1 A, 3.7 A |
Maximum Drain Source Voltage | 20 V |
Package Type | MLP |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 68 mΩ, 95 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 0.6V |
Maximum Power Dissipation | 1.4 W |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 2 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Length | 2mm |
Width | 2mm |
Height | 0.75mm |
Typical Gate Charge @ Vgs | 4 nC @ 4.5 V, 7 nC @ 4.5 V |
Series | PowerTrench |
Maximum Operating Temperature | +150 °C |
