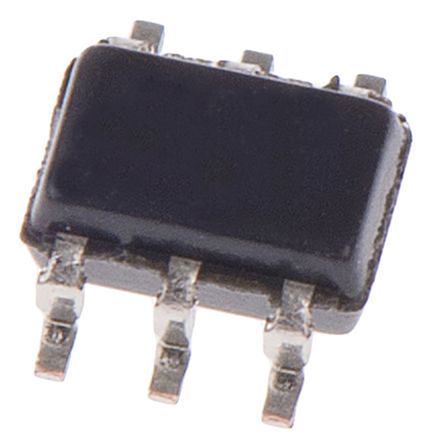

FDG8850NZ Dual N-Channel MOSFET, 750 mA, 30 V PowerTrench, 6-Pin SOT-363 (SC-70) ON Semiconductor [FDG8850NZ]; 671-0362
0₫
Mã kho: 6710362
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | N |
Maximum Continuous Drain Current | 750 mA |
Maximum Drain Source Voltage | 30 V |
Package Type | SOT-363 (SC-70) |
Mounting Type | Surface Mount |
Pin Count | 6 |
Maximum Drain Source Resistance | 400 mΩ |
Channel Mode | Enhancement |
Minimum Gate Threshold Voltage | 0.65V |
Maximum Power Dissipation | 360 mW |
Transistor Configuration | Isolated |
Maximum Gate Source Voltage | -12 V, +12 V |
Number of Elements per Chip | 2 |
Transistor Material | Si |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 1.03 nC @ 4.5 V |
Height | 1mm |
Maximum Operating Temperature | +150 °C |
Length | 2mm |
Width | 1.25mm |
Series | PowerTrench |
