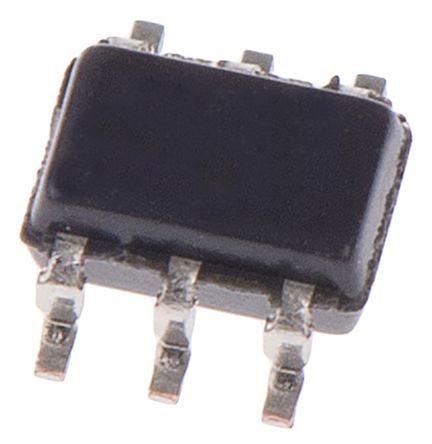

FDG6322C Dual N/P-Channel MOSFET, 220 mA, 410 mA, 25 V, 6-Pin SOT-363 (SC-70) ON Semiconductor [FDG6322C]; 739-0183
0₫
Mã kho: 7390183
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 220 mA, 410 mA |
| Maximum Drain Source Voltage | 25 V |
| Package Type | SOT-363 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 1.9 Ω, 7 Ω |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.65V |
| Maximum Power Dissipation | 300 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Width | 1.25mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 0.29 nC @ 4.5 V, 1.1 nC @ 5 V |
| Length | 2mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1mm |
