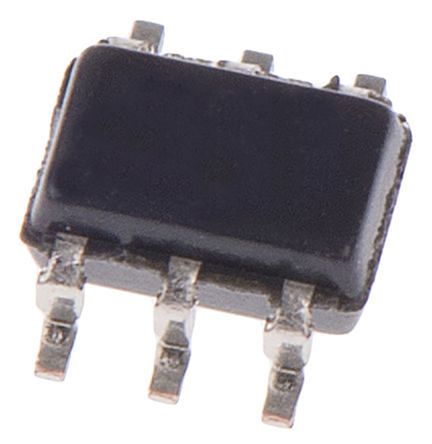

FDG1024NZ Dual N-Channel MOSFET, 1.2 A, 20 V PowerTrench, 6-Pin SOT-363 (SC-70) ON Semiconductor [FDG1024NZ]; 864-8142
0₫
Mã kho: 8648142
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 1.2 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | SOT-363 (SC-70) |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 259 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 0.4V |
| Maximum Power Dissipation | 300 mW, 360 mW |
| Transistor Configuration | Isolated |
| Maximum Gate Source Voltage | -8 V, +8 V |
| Number of Elements per Chip | 2 |
| Height | 1mm |
| Series | PowerTrench |
| Maximum Operating Temperature | +150 °C |
| Length | 2mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 1.8 nC @ 4.5 V |
| Width | 1.25mm |
