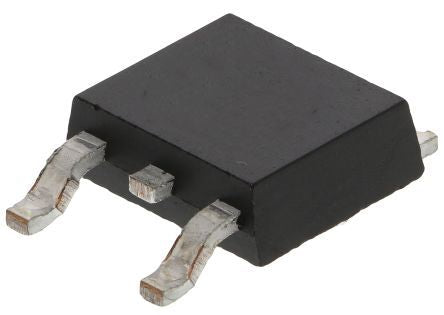

FDD9509L-F085 P-Channel MOSFET, 90 A, 40 V, 3-Pin DPAK ON Semiconductor [FDD9509L-F085]; 178-4234
0₫
Mã kho: 1784234
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 90 A |
Maximum Drain Source Voltage | 40 V |
Package Type | TO-252 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 7.5 mΩ |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 3V |
Minimum Gate Threshold Voltage | 1V |
Maximum Power Dissipation | 150 W |
Transistor Configuration | Single |
Maximum Gate Source Voltage | ±16 V |
Number of Elements per Chip | 1 |
Minimum Operating Temperature | -55 °C |
Typical Gate Charge @ Vgs | 50 nC @ 10 V |
Width | 6.22mm |
Height | 2.39mm |
Maximum Operating Temperature | +175 °C |
Forward Diode Voltage | 1.25V |
Length | 6.73mm |
