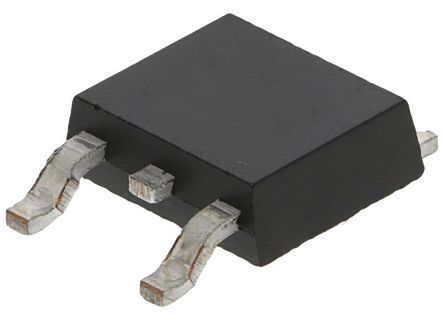

FDD86250-F085 N-Channel MOSFET, 50 A, 150 V, 3-Pin DPAK ON Semiconductor [FDD86250-F085]; 178-4442
0₫
Mã kho: 1784442
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 50 A |
| Maximum Drain Source Voltage | 150 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 22 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 160 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 6.22mm |
| Maximum Operating Temperature | +175 °C |
| Height | 2.39mm |
| Forward Diode Voltage | 1.25V |
| Typical Gate Charge @ Vgs | 28 nC @ 10 V |
| Length | 6.73mm |
